P-Series Pressure Dry Blast Cabinets

P-Series

PRESSURE DRY BLAST CABINETS

sandblasting pressure cabinet

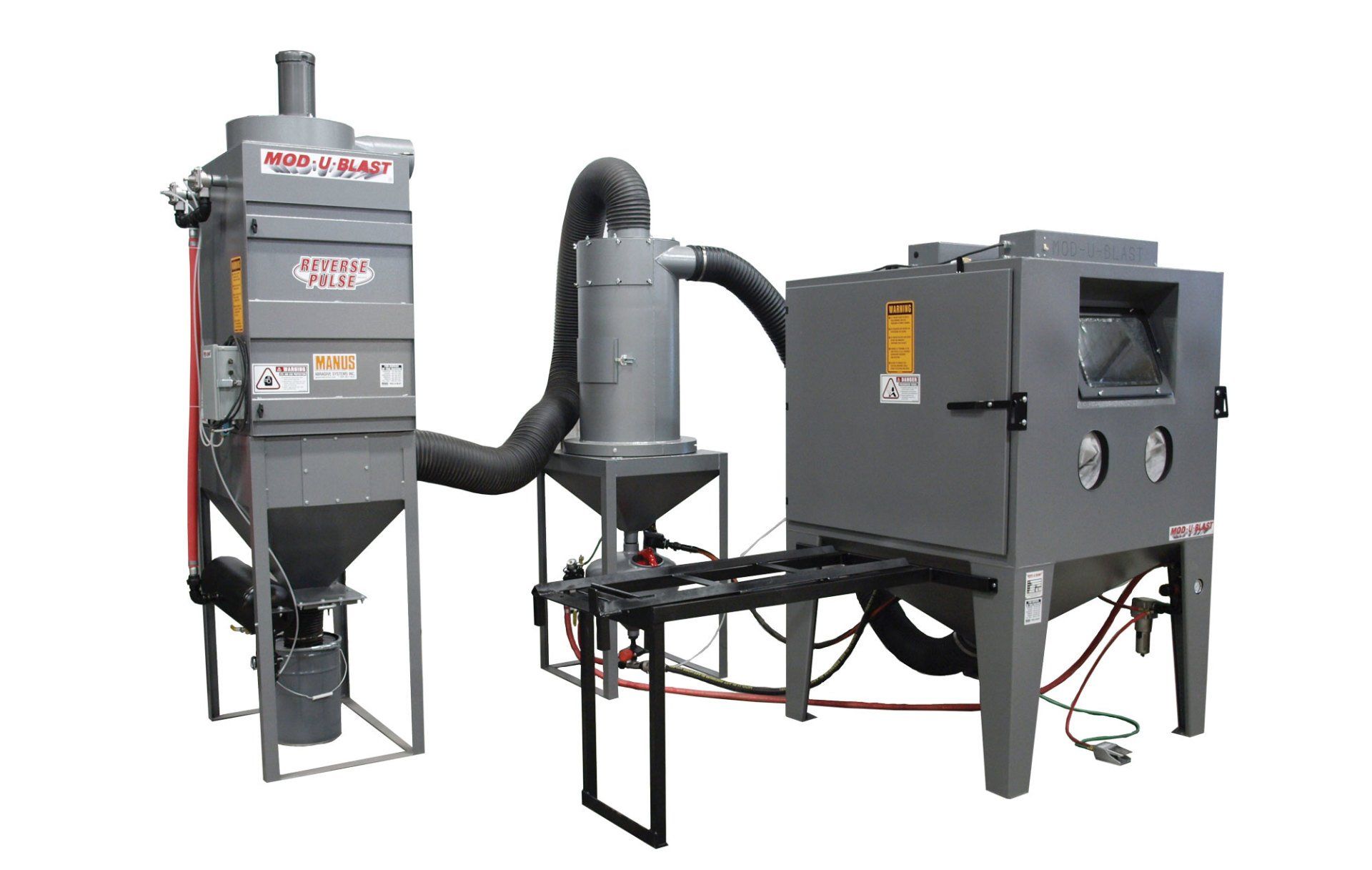

Unit Illustrated above: Model P4848-92C, high production blast cabinet c/w 900 CFM reclaimer, 900 CFM multi-bag dust filter cabinet, and 4-lamp/dual fixture lighting system
HIGH PRODUCTION
  • The Mod-U-Blast® “P Series” Pressure Dry Blast Cabinets were engineered for maximum production (3 to 4 times faster than standard suction blasting - “S Series”). Mod-U-Blast® Pressure Cabinets are equipped with a Pneumatic Valve for optimum safety and blast media flow, direction and velocity (foot pedal operated). Pressure systems give the control needed to clean at gentle pressures (10 to 20 PSI) or aggressive cleaning as high as 110 PSI. Minimum pressure with Suction Systems is 30 to 40 PSI. Efficiency

MEDIA RECLAIMER:
  • Engineered and designed to precision, the Mod-U-Blast® tunable media reclaimer is unequaled in performance. Separation of the blast media, over sized foreign matter, and dust becomes as accurate as possible in a cyclone-type reclaim system. Equipped with replaceable wear plate.
Available as an upgrade kit for cabinets without reclaimers.
Cabinet work area determines reclaimer size.

METERING / REMOTE SYSTEM:
  • Mod-U-Blast® pressure cabinets come standard with an M-Valve metering valve for defined efficiency. This valve allows for the fine-tuning of the flow of media to the mixing point where the abrasive meets the air flow. All pressure cabinets come equipped with an auto-air valve/blow down system that is controlled by a foot controlled pedal. Once the foot pedal is activated, the auto-air valve opens and the blow down valve closes pressurizing the blast vessel to the pre-regulated blast pressure that will start the blast cycle. Once the foot pedal is released, the process reverses and the blast vessel blows down into the rubber lined hopper of the blast cabinet.
STANDARD FEATURES
  • 14 gauge steel construction
  • Venturi blast nozzle (3/16” - Standard)
  • Natural rubber vinyl gloves
  • Air blow-off gun
  • Perforated steel flooring
  • Pneumatic foot pedal control switch
  • Cabinets are 100% modular and upgradeable
  • Moisture separator, regulator, gauge, control panel
  • External lighting system (fluorescent)
  • Safety glass - throughout
  • Powder coated for durability
  • Easy change safety glass window
  • Overlapping positive tension doors
  • Replaceable reclaim wear plate
  • 0.7 Cu. Ft. pressure pot
  • Safety relief valve
  • Adjustable air intakes for clear visibility
  • Safety door shut-offs
Air Requirements:
Nozzle Bore Size CFM@80PSI
2 1/8" 18
3 (standard) 3/16" 39
4 1/4" 69
5 5/16" 115
6 3/8" 160
blast cabinet on mobile cart
Unit Illustrated Above: Model P6060-12C, Custom P-series cabinet c/w 1200 CFM reclaimer, 1200 CFM reverse pulse dust collector and H.D. turntable built on fixed door / track.

P-Series Cabinet Options


Tab 1 Image Alt Text

Available with inside and/or outside track assembly or as set-in turntable only. Standard turntables hold up to 700 lbs, custom turntables hold up to 2000 lbs. Mod-U-Blast’s turntable systems will increase worker convenience, comfort and productivity while decreasing glove wear, hand injuries and overall operator fatigue. Ideal for blast cleaning larger, heavier components. May be furnished for one (1) or both (2) sides of the blast cabinet.


Tab 2 Image Alt Text

Wear kits are available for all machine sizes. This option is recommended when harsh blast media is being used, eg: aluminum oxide. A cabinet wear kit will extend the life of any machine regardless of the media being used. Each wear kit includes: 1/16” Natural gum draping on sides and back of cabinet, H.D. rubber lined return hose, and tungsten carbide blast nozzle.* Urea Spray lining available


Tab 3 Image Alt Text

Custom Pass through kits available for new or existing Cabinets.


Tab 4 Image Alt Text

Save time and discomfort blasting pipe with Mod-U-Blast’s Pipe Rolling Carts.

P-SERIES ORDERING INFORMATION
Stock # Description Working Chambers (W"xD"xH") Estimated Shipping Weight (lbs.)
P3026-3B PRES.CABINET 300 CFM RECLAIMER & BAG 30” x 26” x 40” 503
P3026-3FH PRES. CABINET 300 CFM RECL. & HOPPER FILTER 663
P3026-31C PRES. CABINET 300 CFM RECL. & REV. PULSE D/C 853
P3626-3B PRES. CABINET 300 CFM RECLAIMER & BAG 30” x 26” x 40” 573
P3626-3FH H PRES. CABINET 300 CFM RECL. & HOPPER D/F 733
P3626-31C PRES. CABINET 300 CFM RECL. & R/P D/C 923
P3626-6B PRES. CABINET 600 CFM RECLAIMER & BAG 593
P3626-6FH PRES. CABINET 600 CFM RECL. & HOPPER D/F 783
P3626-62C PRES. CABINET 600 CFM C/W REV. PULSE D/C 973
P3636-6B PRES. CABINET 600 CFM RECLAIMER & BAG 36” x 36” x 40” 690
P3636-6FH PRES. CABINET 600 CFM RECL. & HOPPER D/F 875
P3636-62C PRES. CABINET 600 CFM C/W REV. PULSE D/C 1073
P4836-6B PRES. CABINET 600 CFM RECLAIMER & BAG 48” x 36” x 40” 783
P4836-6FH PRES. CABINET 600 CFM RECL. & HOPPER D/F 973
P4836-62C PRES. CABINET 600 CFM C/W REV.PULSE D/C 1183
P4836-9B PRES. CABINET 900 CFM RECLAIMER & BAG 803
P4836-9FH PRES. CABINET 900 CFM RECL. & HOPPER D/F 1100
P4836-92C PRES. CABINET 900 CFM C/W REV. PULSE D/C 1260
P4848-9B PRES. CABINET 900 CFM RECLAIMER & BAG 48” x 48” x 40” 833
P4848-9FH PRES.CABINET 900 CFM RECL. & HOPPER FILTER 1283
P4848-92C PRES. CABINET 900 CFM C/W REV. PULSE D/C 1458
P6036-9FH PRES. CABINET 900 CFM RECL. & HOPPER D/F 1248
P6036-92C PRES. CABINET 900 CFM C/W REV. PULSE D/C 1413
P6048-9FH PRES. CABINET 900 CFM RECL. & HOPPER D/F 1378
P6048-92C PRES. CABINET 900 CFM C/W REV.PULSE D/C 1503
P6060-12FH PRES. CABINET 1,200 CFM RECL. & FILT/W PER 60” x 60” x 40” 1565
P6060-12C PRES. CABINET 1,200 CFM C/W REV. PULSE D/C 1688
P7272-12FH PRES. CABINET 1,200 CFM & HOPPER FILTER 72” x 72” x 40”
P7272-12C PRES. CABINET 1,200 CFM C/W REV. PULSE D/C

Two Station -  Dual Pressure P-Series Blast Cabinets

Stock # Description Working Chambers (W"xD"xH") Estimated Shipping Weight (lbs.)
DP7236-9FH DUAL PRESSURE 900 CFM & HOPPER FILTER 72” x 36” x 40” 1610
DP7236-92C DUAL PRESSURE 900 CFM & REV. PULSE D/C 1723
DP7236-12FH DUAL PRESSURE 1,200 CFM & HOPPER FILTER 1650
DP7236-12C DUAL PRESSURE 1,200 CFM C/W REV. PULSE D/C 1783
DP9636-12FH DUAL PRESSURE 1,200 CFM & HOPPER FILTER 96” x 36” x 40” 2428
DP9648-12C DUAL PRESSURE 1,200 CFM C/W REV. PULSE D/C 96” x 48” x 40” 2588
