Mega-Blast Series

100 & 160 CU. FT. BULK BLAST MACHINES

Bulk sandblasting machine on highway trailer
Mega-Blast Bulk Abrasive Blasters are available in two standard sizes, either 100 Cu. Ft. (2800 Litre) or 160 Cu. Ft. (4500 Litre) capacity. Custom engineered machines are also available. High-volume and high-production are standard with Mega-Blast units, all vessels are rated to 150 psi working pressure. We manufacture each vessel using 3/8” metal on the tank shells and 1/2” metal on the tank heads. All Mega-Blast vessels are CRN-Registered, National Board Certified, U-Stamped (ASME), and A-Stamped (Alberta).

Standard Features:
  • Pressure Safety Relief Valve with Secondary Manual Valve
  • Accessory Mounting Ports (4) to house Bulk Bag Loading Platform, Safety Cage, Swivel Filling Funnel, Hose Racks
  • 150 psi Rated Vessel
  • 1-1/2” Automatic Air Valves
  • Full 3” Inlet
  • Stationary Leg Pads
  • 2x Operator Outlets (T-Valves), Pneumatic or Electric
  • 4 Outlet Capability
  • Full Load Lifting Eyes (2)
  • 3/8” Metal Shell and 1/2” Metal Vessel Heads
  • Blasted, Primed and Painted Surface (White/Red)
  • Remote Control Power Box Package (Electric Systems)
  • Standard Footprint on all
  • Mega-Blast Bulk Systems for Various Mounting Options
  • Guardian bulk pot safety system
Unit Illustrated above: Model #MB160-HT4E 160 Cu. Ft Mega-Blast Machine Highway Trailer Mounted
Bulk pot safety system
All Mega-Blast® machines (100 Cu. Ft & 160 Cu. Ft)
now come with the Guardian™ safety system as a standard feature -
  Click here to learn more about the guardian

Mega-Blast Mounting Options

Skid Mounted

  • Rugged heavy steel skid with fork pockets

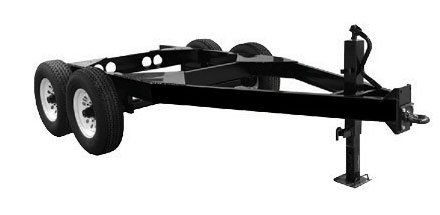

Yard Trailer

  •  Off-road use only, rate 14K GVW rated, dual axle torsion suspension, H.D. jack stand.

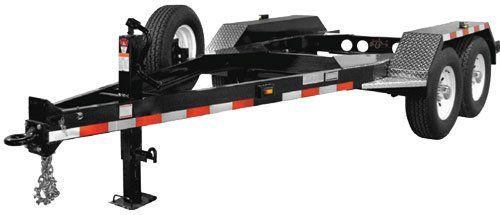

Highway Trailer

  • Canada and USA (DOT) approved. Includes formed H.D. fenders, L.E.D. lights, torsion suspension, electric brakes, 14K GVW rated, dual axle, chrome centre caps, chrome lug nuts, spare tire, H.D. jack stand.

Dual Tandem Highway Trailer

  • Canada and USA (DOT) approved. Includes formed H.D. fenders, L.E.D. lights, torsion suspension, electric brakes, 20K GVW rated, dual axle, chrome centre caps, chrome lug nuts, spare tire, H.D. jack stand.

Mega-Blast Machine Options

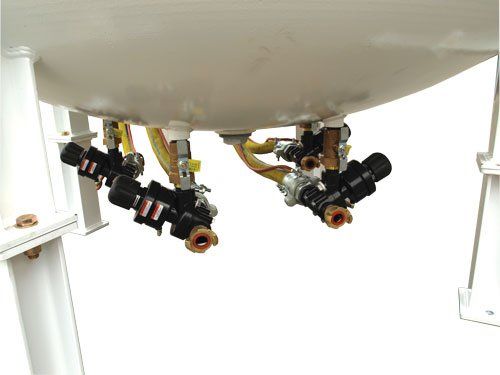

Additional Operator Outlets / APV-II Abrasive Metering Valves / Union-end Ball Valves

  • Mega-Blast® machines come standard with two (2) operator outlets (pneumatic or electric). You can equip your bulk unit with up to four (4) outlets, upgrade to state of the art APV-II metering valves that come standard with tungsten carbide sleeves and add union-end ball valves that provide easy access to the metering valves for maintenance or clearing blockages.

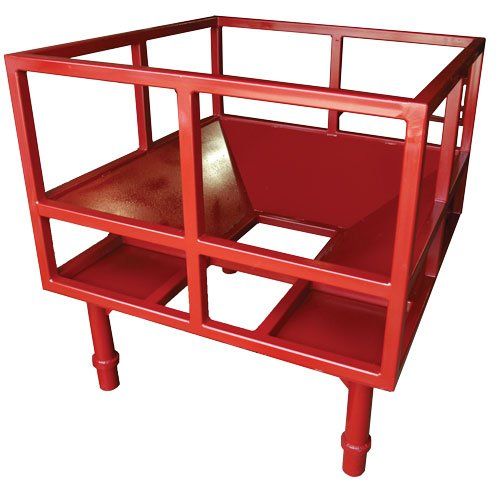

Bulk Bag Loading Platform

  •  Save time loading blast media using Mod-U-Blast’s loading platform. Like all Mega-Blast® options, this loading platform can be added at time of purchase or a later date to accommodate bulk bag loading.

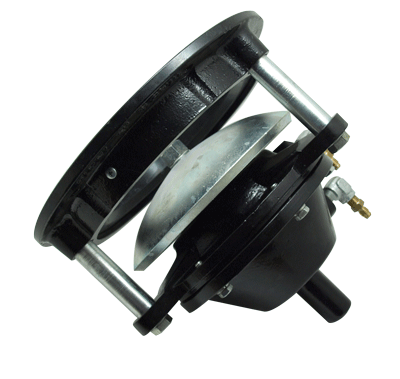

Auto Posi-Seal Valve

  • The “Double Seal” Posi-Seal valve is a 10” auto pop-up valve that allows filling without removal of 10” closure. Internally vessel mounted, ideal for indoor blastroom applications.

Custom Paint

  • Looking to promote your company’s brand colors?  Mod-U-Blast can custom paint your Mega-Blast® machine any color you choose.

Mega-Blast Photos
