SEA-CAN ABRASIVE BLAST ROOMS

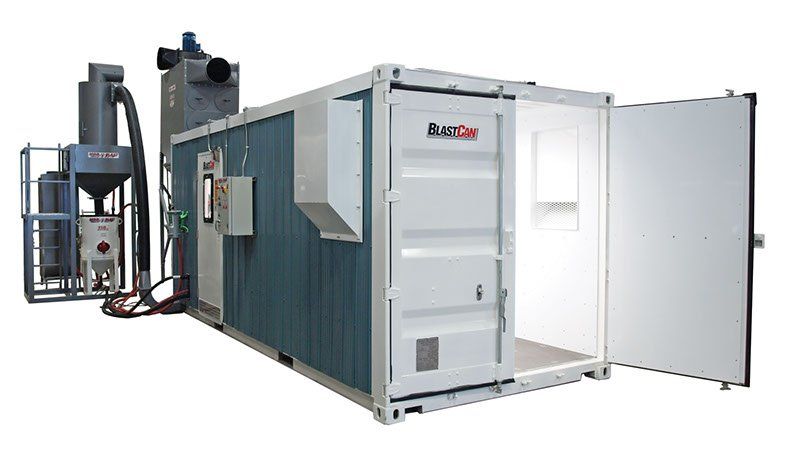

20' L x 8.5' W x 8.5' H Blast Can with Pneumatic Recovery System / Below Floor Sweep-in Illustrated

Why a Mod-U-Blast Room?
Mod-U-Blast®’s blast rooms are built to ensure most optimal production levels with low maintenance. Our blast rooms are specifically engineered to meet your blasting needs.
Main Advantages
- No weather constraints. Blast anytime, any day.
- High production levels
- Reduced media costs from recycled media recovery systems
- Controlled work environments and exceptional lighting for consistent quality of work.
- Very clean work environments, contained dust
Features:
- External swing doors (2).
- One external man door with heavy-duty door latch kit with striker and safety viewing window located on either side of blast room.
- All doors are equipped with safety interlocks to de-activate the blast when the door is opened.
- Fluorescent tube lighting assemblies in blast resistant frames with polycarb protective covers
- Puck Board Lining – complete with 1/2” puck board for noise reduction, increase lighting, airflow improvement, and protection of blast area.
- External Aluminum Siding (grayish blue) with angle strips – installed.
- Intake / Exhaust plenums.
- Hose manifold to handle blast hose, remote line, breathing line and blow off air hose.
- Steel Floor comes complete with:
- Custom fitted checker plate or flat steel floor.
- Built with welded steel and anchored to the floor to prevent future ‘curling’ of plates due to the peening effect of blast operations.
- External Electric Control Panel – complete with 12 Volt controls to Blast System.
- Abrasive Blast Pot – Model: MBM-6.5SRE – complete with custom spider / lid assembly.
Media Recovery Options
Each system comes in different size variations to well accommodate any type of recovery, from a single portion sweep to a full floor recovery.

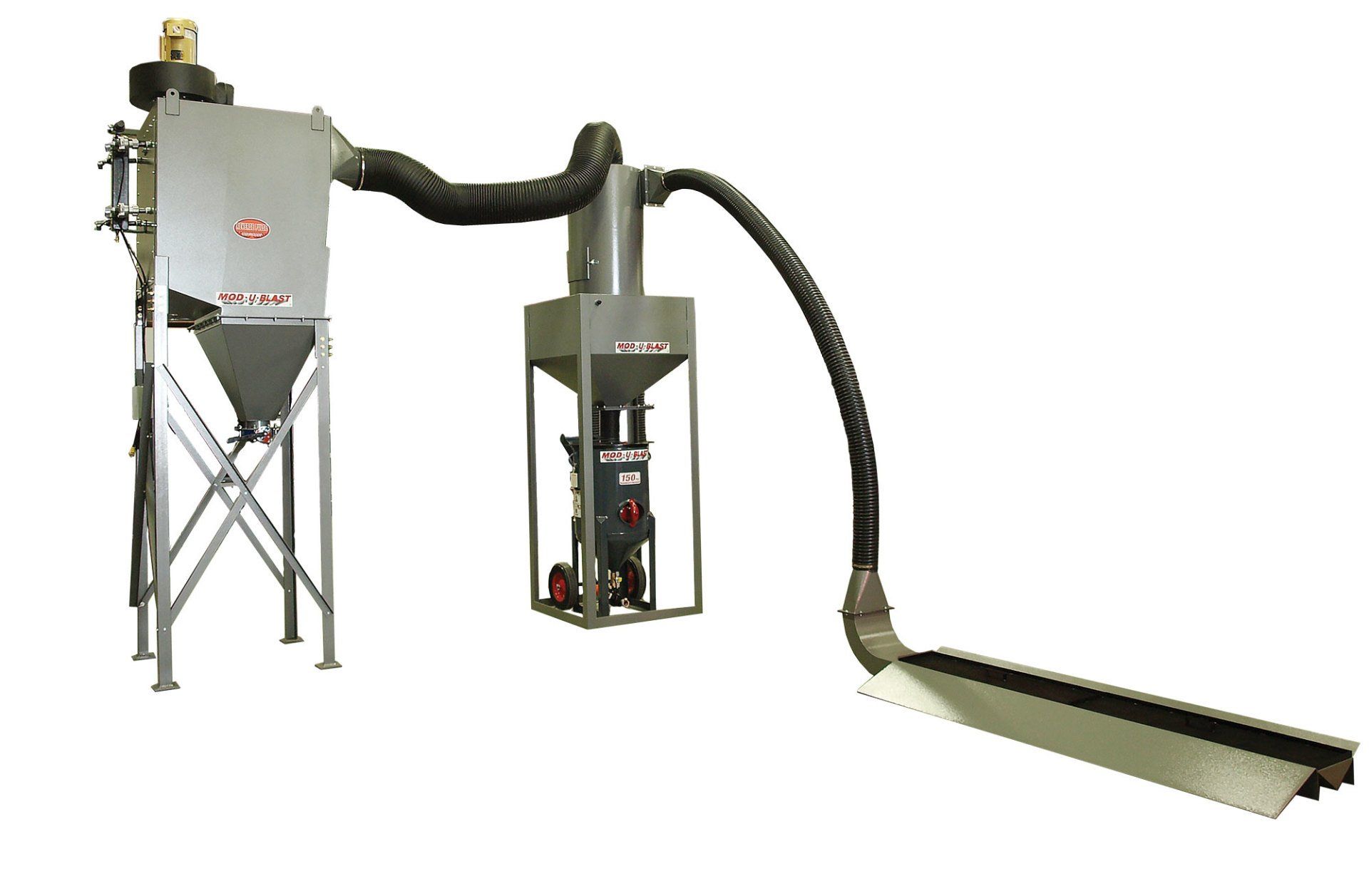

Pneumatic Recovery

For use with glass bead, garnet, aluminum oxide, plastic and walnut shell. Standard Sizes: 4', 6', 8', 10' & 12'
(Custom sizes available upon request)

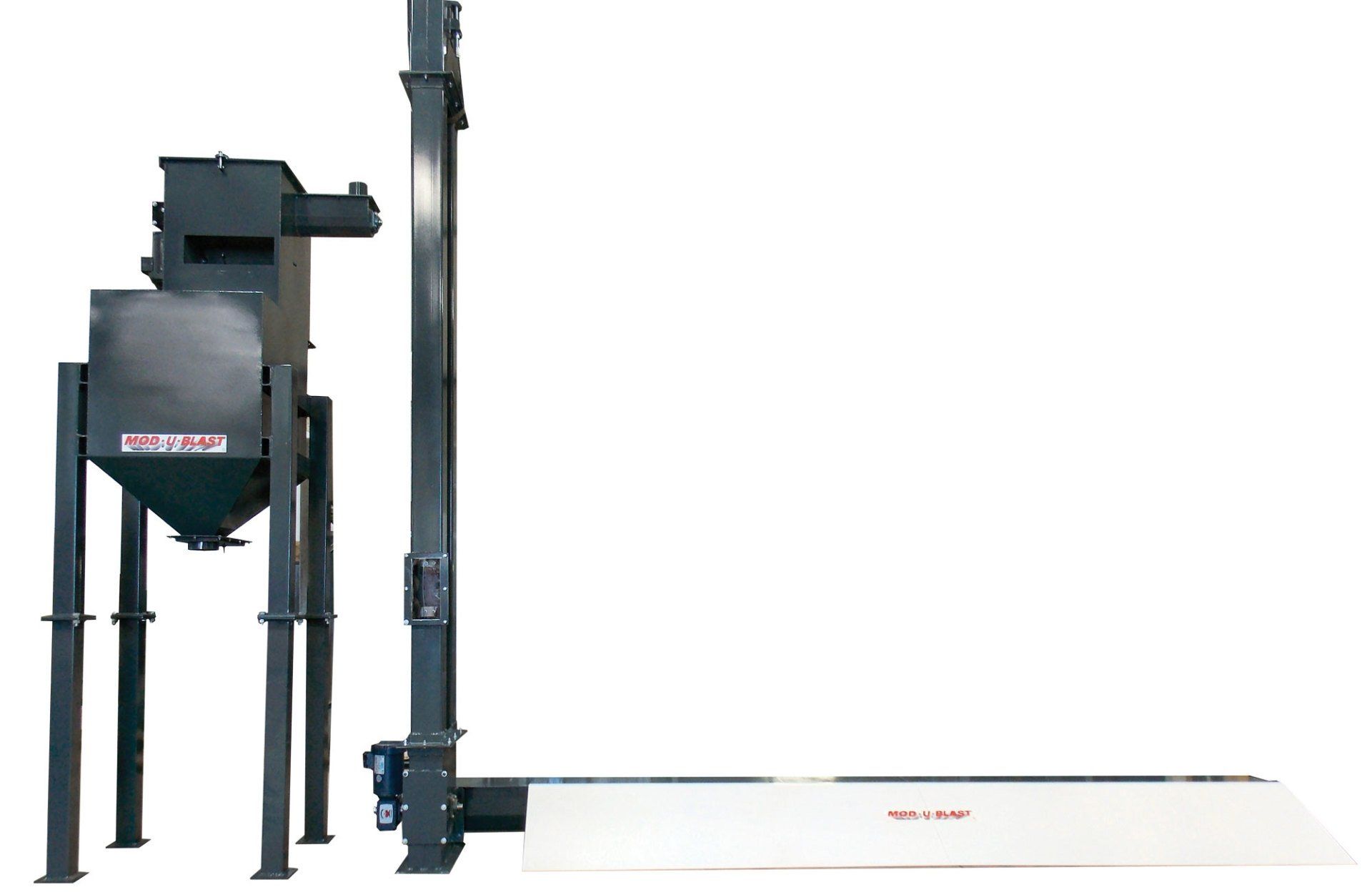

Mechanical Recovery

*Used for quicker recovery
For use with all reusable medias including steel grit & shot Standard Sizes: 9', 12' & 16'
(Custom sizes available upon request)
