PSS-Series Direct Pressure Shot Blast Cabinets

PSS-Series

DIRECT PRESSURE SHOT BLAST CABINETS

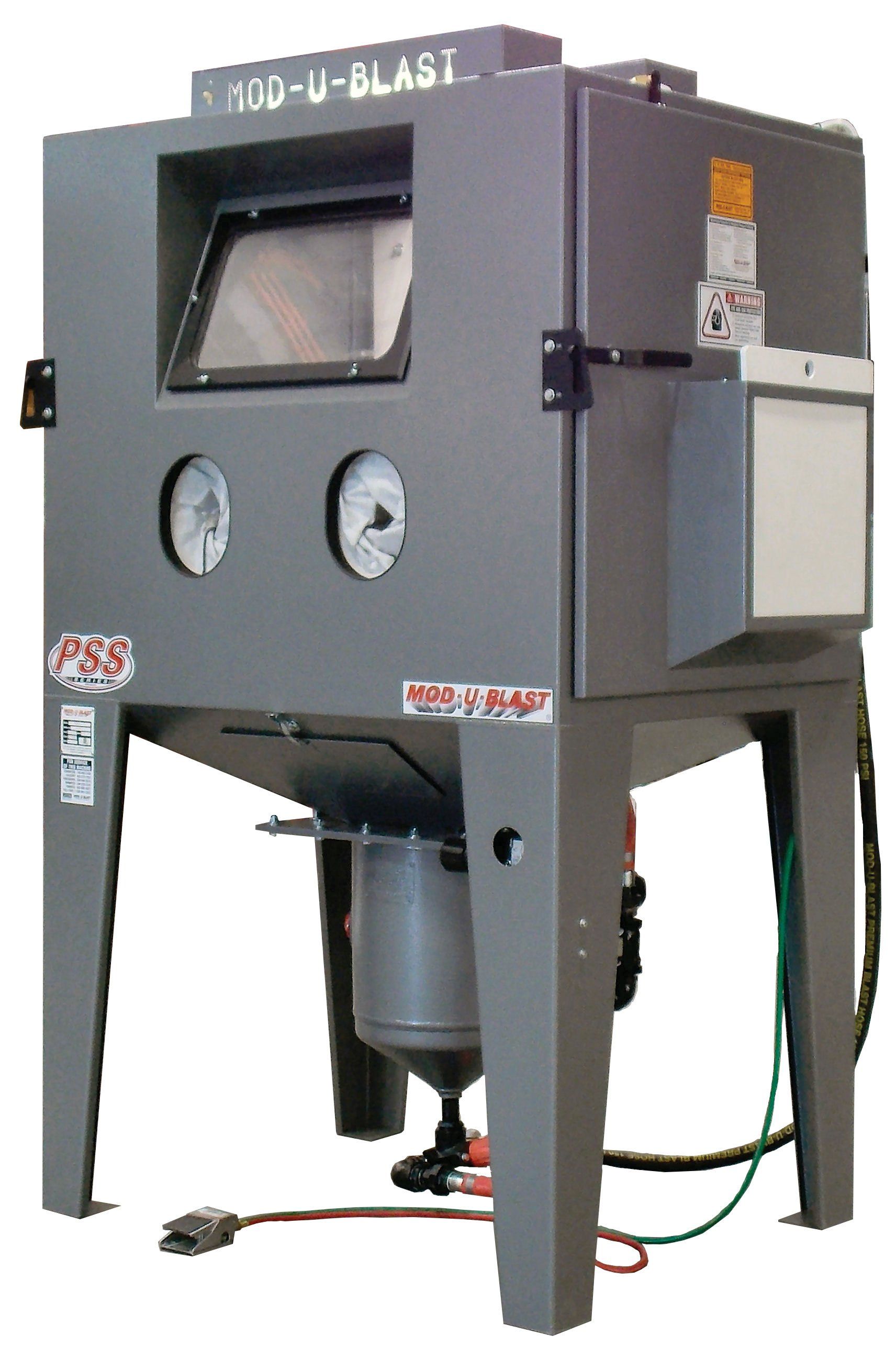

shot blasting cabinet
Unit Illustrated above:  Model PSS4836-62C PSS Series blast cabinet c/w 600 CFM reclaimer, 600 CFM reverse pulse dust collector, custom door inlet for pipe pass-through (Dust collector not shown.)

  • PSS-Series machines are designed for use with abrasives with a bulk density of 130 or higher, typically steel shot or grit. Lighter abrasives such as garnet, stone blast, ferric oxide, aluminum oxide can be used however these lighter abrasives are more effectively utilized in our Industrial P (Pressure) and S (Suction) Series Machines.


  • PSS-Series machines are built to withstand the rigors of heavy blast media. Sprayed with a poly urea coating, this machine is the right solution for any peening application whether for stress relief, oil retention, cleaning or finishing purposes.


  • The pressure vessel is positioned below the feed hopper because heavy medias cannot be picked up by using pneumatic reclaimers. Media drops directly into the pot, through an appropriately sized screen for re-use. The Mod-U-Blast® 300, 600 or 900 CFM blower/separator assembly removes dust and maintains optimum visibility in the cabinet.
STANDARD FEATURES
  •  Internal abrasion resistant urea spray lining
  • 12 gauge steel (1/8” rubber in loading hopper section)
  •  Tungsten blast nozzle
  •  Heavy 1/4” perforated steel floor
  •  Air blow-off gun
  •  Operator step-up station platform
  •  Polycarbonate safety window (quick change frame system)
  •  Optimum Mod-U-Blast® foot valve
  • External lighting system
  •  Powder coated for durability
  •  Auto control system
  •  Special grit valve for metering and flow precision
  • Moisture separator, regulator and gauge
  • Open front for easy maintenance and hopper access
  •  Overlapping positive tension doors
  •  Safety door shut offs
shot blasting cabinet
Unit Illustrated above:  Model PSS9648-9FHS custom three station blast cabinet c/w 900 CFM blower, 900 CFM dust collector (not shown.), custom door inlet for pipe pass-through, pipe rolling cart and operator platform.

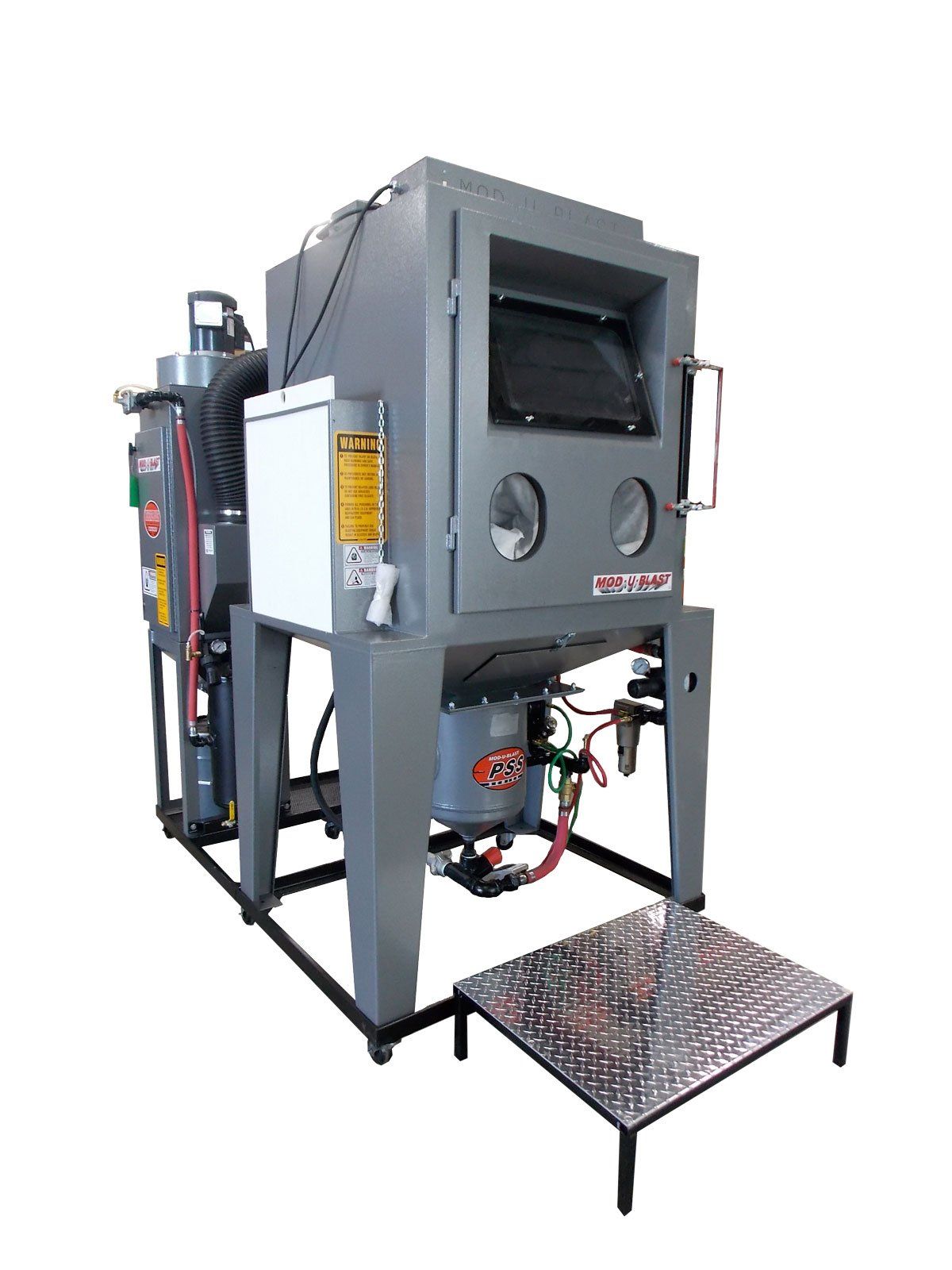

direct pressure pipe blasting steel shot cabinet
Unit Illustrated above: Model PSS3626-31C, high production blast cabinet c/w 300 CFM blower, 300 CFM Reverse Pulse dust collector, custom door inlet for pipe pass through, & mobile workcart with swivel casters
Air Requirements:
Nozzle Bore Size CFM@60PSI
2 1/8" 22
3 (standard) 3/16" 49
4 1/4" 90
5 5/16" 148
6 3/8" 197
7 7/16" 265

PSS-SERIES CABINET OPTIONS


Tab 1 Image Alt Text

Available with inside and/or outside track assembly or as set-in turntable only. Standard turntables hold up to 700 lbs, custom turntables hold up to 2000 lbs. Mod-U-Blast’s turntable systems will increase worker convenience, comfort and productivity while decreasing glove wear, hand injuries and overall operator fatigue. Ideal for blast cleaning larger, heavier components. May be furnished for one (1) or both (2) sides of the blast cabinet.


Tab 3 Image Alt Text

Custom Pass through kits available for new or existing Cabinets.


Tab 4 Image Alt Text

Save time and discomfort blasting pipe with Mod-U-Blast’s Pipe Rolling Carts.

PSS-SERIES ORDERING INFORMATION
Stock # Description Working Chambers (W"xD"xH") Estimated Shipping Weight (lbs.)
PSS3636-3B CABINET 300 CFM BLOWER & BAG 36” x 36” x 40” 683
PSS3636-3F CABINET 300 CFM BLOWER & FILTER 883
PSS3636-3FH CABINET 300 CFM BLOWER. & HOPPER D/F 908
PSS4836-6B CABINET 600 CFM BLOWER & BAG 48” x 36” x 40” 833
PSS4836-6F CABINET 600 CFM BLOWER & FILTER 993
PSS4836-6FH CABINET 600 CFM BLOWER. & HOPPER D/F 1018
PSS4836-62C CABINET 600 CFM C/W REV. PULSE D/C 1233
PSS6036-9B CABINET 900 CFM BLOWER & BAG 60” x 36” x 40” 1038
PSS6036-9F CABINET 900 CFM BLOWER & FILTER 1258
PSS6036-9FH CABINET 900 CFM BLOWER. & HOPPER D/F 1283
PSS6036-92C CABINET 900 CFM C/W REV. PULSE D/C 1463
