MOD-U-BLAST ENGINEERED ABRASIVE BLAST ROOMS

 Why a Mod-U-Blast Blast Room?
 Mod-U-Blast®’s blast rooms are built to ensure most optimal production levels with low maintenance. Our blast rooms are specifically engineered to meet your blasting needs

Main Advantages:
  • No weather constraints. Blast anytime, any day.
  • High production levels.
  • Reduced media costs from recycled media recovery systems.
  • Controlled work environments and exceptional lighting for consistent quality of work.
  • Very clean work environments, contained dust.
 Features:
  •  External swing doors (2).

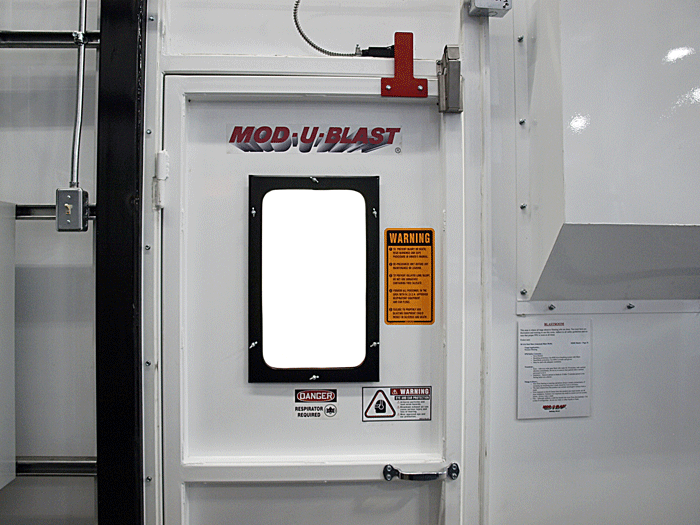

  • One external man door with heavy duty door latch kit with striker and safety viewing window located on either side of blast room.
  • All doors are equipped with safety interlocks to de-activate the blast when the door is opened.
  • LED tube lighting assemblies in blast resistant frames with polycarb protective covers.
  • Panels constructed out of 10 gauge steel, powder coated white on interior and exterior.
  • Intake / Exhaust plenums.
  • Hose manifold to handle blast hose, remote line, breathing line, and blow off air hose.
  • Steel Floor comes complete with
    - Custom fitted checker plate or flat steel floor.
    - Built with welded steel and anchored to the floor to prevent future ‘curling’ of plates due to the peening effect of blast operations.
  • External Electric Control Panel – complete with 12 Volt controls to Blast System.
  • Abrasive Blast Pot – Model: MBM-6.5SRE – complete with custom spider / lid assembly
Media Recovery Options
 Each system comes in different size variations to well accommodate any type of recovery, from a single portion sweep to a full floor recovery.

Pneumatic Recovery

Pneumatic recovery system
For use with glass bead, garnet, aluminum oxide, plastic and walnut shell. Available above or below floor recovery.
Standard Sizes: 4', 6', 8', 10' & 12' (Custom sizes available upon request)
Mechanical Recovery
Mechanical recovery system
*Used for quicker recovery
Available above or below floor recovery.
For use with all reusable medias including steel grit & shot Standard Sizes: 9', 12' & 16' (Custom sizes available upon request)

Custom Blast Rooms are engineered and designed to your exact needs.

Illustrated: State of the art custom engineered blast training room equipped with unique features specifically designed to train and prepare blasting operators with: Tank blasting, confined space blasting, hanging suspension blasting and more..

circular blast room
Component Photos

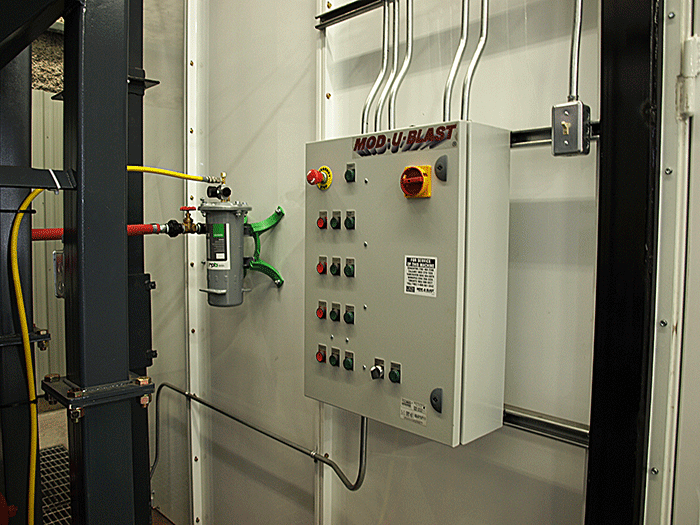

Electric Control Panel

  • External Electric Control Panel  complete with 12 Volt controls to Blast System

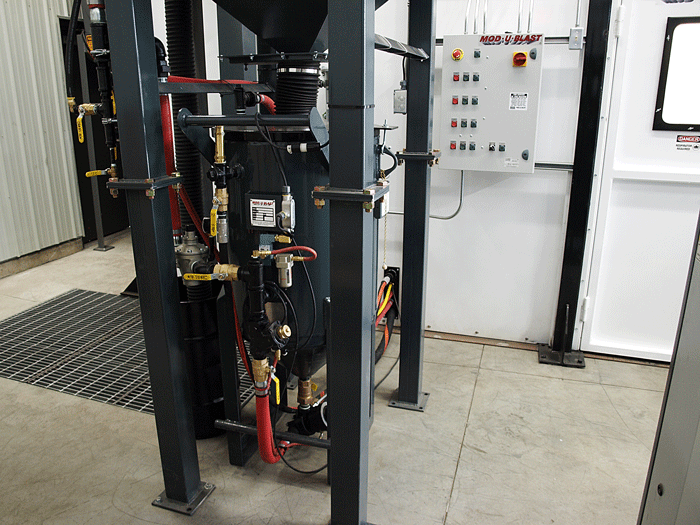

Abrasive Blast Pot

  •   Abrasive Blast Pot – Model: MBM-6.5SRE – complete with custom spider / lid assembly, APV-2 Valve

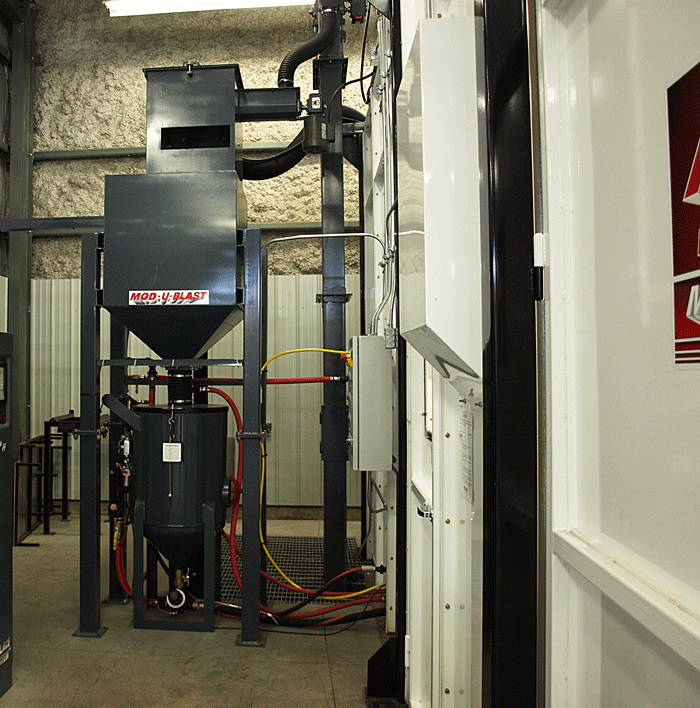

Recovery System

  • Bucket elevator, air wash and storage hopper

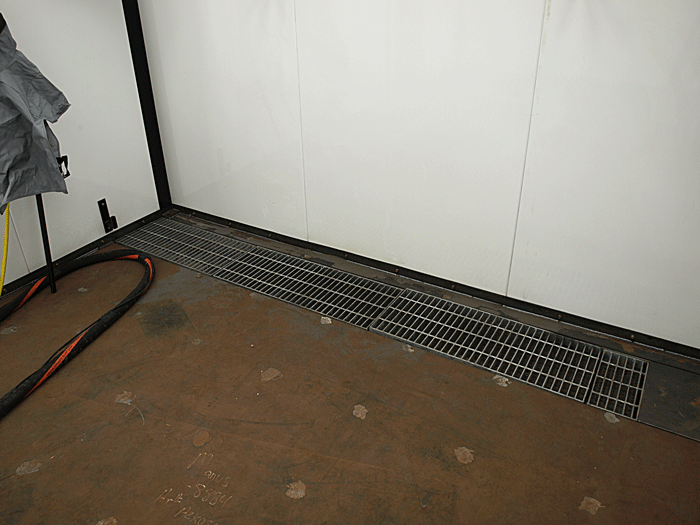

Below Floor Sweep-in

  • Mechanical Screw
