PMB-Series Plastic/Light Media Pressure Cabinets

PMB-Series


PLASTIC / LIGHT MEDIA BLAST CABINETS

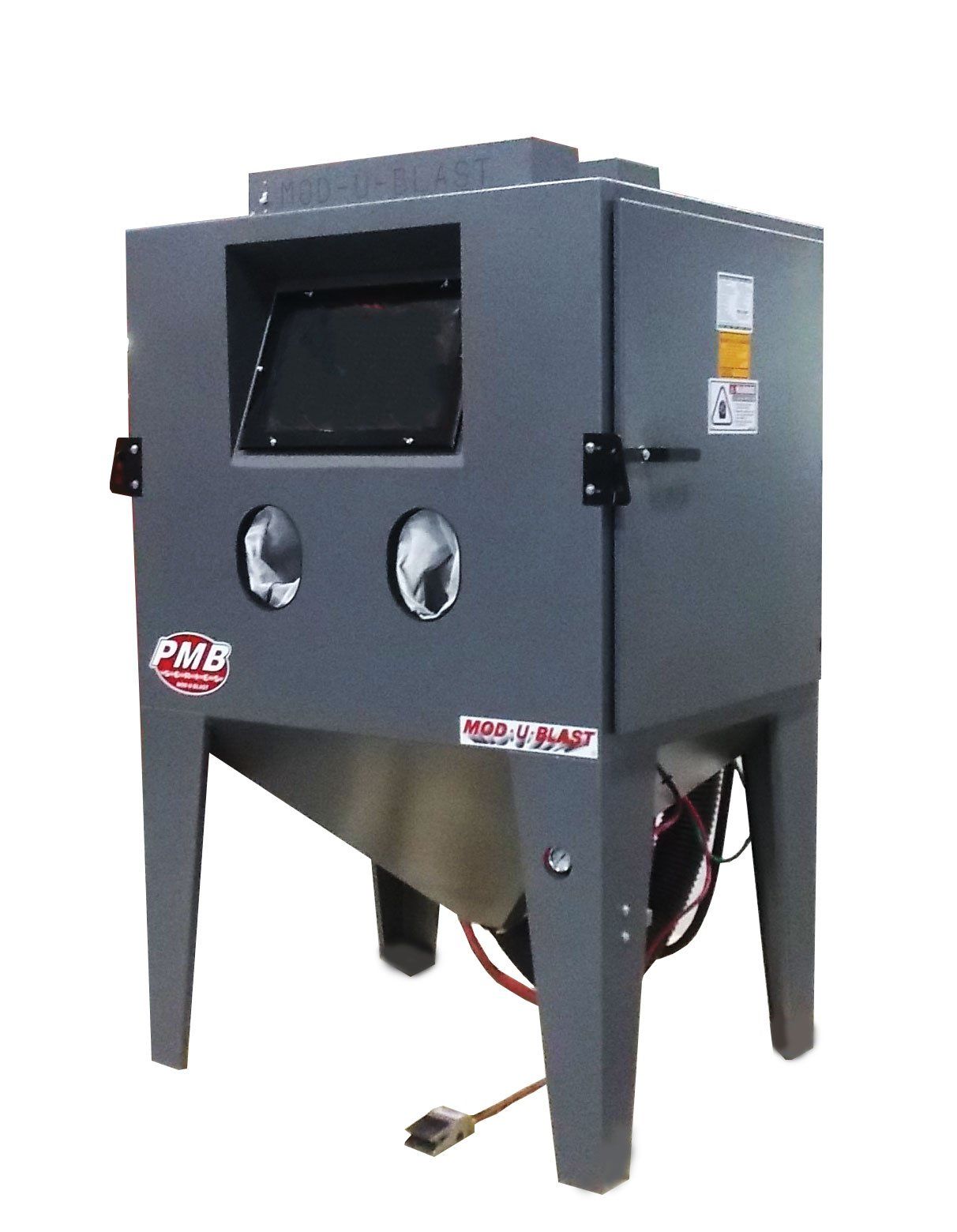

plastic / light media sandblasting cabinet
Unit Illustrated above:  Model PMB4836-62C PSS Series blast cabinet c/w 600 CFM reclaimer, 600 CFM reverse pulse dust collector. (Dust collector not shown.)
These machines are designed to work best with recyclable blast medias which have a bulk density not higher than 75 such as plastic media, corn cob, nut shells and wheat starch. Specify media and size desired.

NOTE: Blast media should be pretreated with an anti-static agent to avoid inner system build up.

Advanced Reclaim System
Mod-U-Blast®’s “PMB-Series” machines are engineered to efficiently recycle lightweight abrasives. Our 3-stage PMB adjustable reclaimer accomplishes this task.

Stage 1: Dust Separation.
 Centrifugal force keeps the heavier particles to the outside wall of the cyclone. Our large intake pipe draws dust and lighter, broken down media from the cyclone center at a lower speed to ensure that reusable media is not discarded prematurely. Dust is then exhausted to the collector.

Stage 2: Oversized Particle Removal.
 By pneumatically vibrating the perforated trash screen, only particles of smaller size (reusable abrasive, metallic debris) can reach stage 3.

Stage 3: Ferrous Particle Removal.
 All material that passes stage 1 and 2 must pass through a magnetic field where any ferrous particles are trapped.
This eliminates possible damage to the substrate being blasted. The magnetic particle separator grill can easily be removed for discarding of collected particles.
Standard Features
  • 14 gauge steel construction
  • 3-stage advanced reclaimer c/w vibrating screen and mag-particle separator
  • Pneumatically vibrated grit valve for improved flow for light abrasive
  • Perforated steel floor (11 gauge)
  • Ceramic blast nozzle
  • Air blow-off gun
  • Optimum foot valve
  • External lighting system
  • Quick change safety window
  • Powder coated for durability
  • Auto control system
  • Moisture separator, regulator, gauge and control panel
  • Overlapping positive tension doors
  • Adjustable air intakes for clear visibility
  • Safety door shut-offs

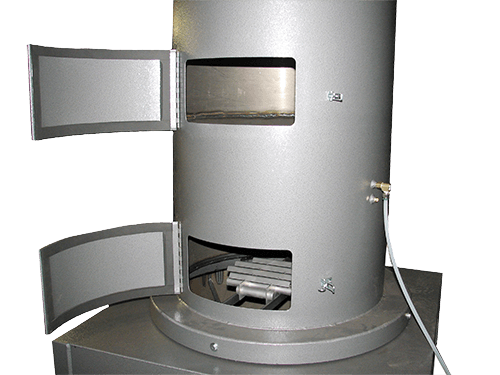

Illustrated Below:  Advanced 3 stage reclaim system.
advanced 3 stage sandblasting reclaimer
Air Requirements:
Nozzle Bore Size CFM@60PSI
2 1/8" 13
3 (standard) 3/16" 30
4 1/4" 55
5 5/16" 90
6 3/8" 125

Tab 1 Image Alt Text

Available with inside and/or outside track assembly or as set-in turntable only. Standard turntables hold up to 700 lbs, custom turntables hold up to 2000 lbs. Mod-U-Blast’s turntable systems will increase worker convenience, comfort and productivity while decreasing glove wear, hand injuries and overall operator fatigue. Ideal for blast cleaning larger, heavier components. May be furnished for one (1) or both (2) sides of the blast cabinet.


Tab 2 Image Alt Text

Wear kits are available for all machine sizes. This option is recommended when harsh blast media is being used, eg: aluminum oxide. A cabinet wear kit will extend the life of any machine regardless of the media being used. Each wear kit includes: 1/16” Natural gum draping on sides and back of cabinet, H.D. rubber lined return hose, and tungsten carbide blast nozzle.* Urea Spray lining available


Tab 3 Image Alt Text

Custom Pass through kits available for new or existing Cabinets.


Tab 4 Image Alt Text

Save time and discomfort blasting pipe with Mod-U-Blast’s Pipe Rolling Carts.

PMB-SERIES ORDERING INFORMATION
Stock # Description Working Chambers (W"xD"xH") Estimated Shipping Weight (lbs.)
PMB4836-6F Pressure Cab. Plastic blast 600 CFM / filter 48” x 36” x 40” 973
PMB4836-6FH Pressure Cab. Plastic blast 600 CFM / hopper filter 1000
PMB4836-62C Pressure Cab. Plastic blast 600 CFM / reverse pulse DC 1213
PMB6036-9F Pressure Cab. Plastic blast 900 CFM / filter 60” x 36” x 40” 1238
PMB6036-9FH Pressure Cab. Plastic blast 900 CFM / hopper filter 1268
PMB6036-92C Pressure Cab. Plastic blast 900 CFM / reverse pulse DC 1443
PMB6048-9F Pressure Cab. Plastic blast 900 CFM / filter 60” x 48” x 40” 1358
PMB6048-9FH Pressure Cab. Plastic blast 900 CFM / hopper filter 1388
PMB6048-92C Pressure Cab. Plastic blast 900 CFM / reverse pulse DC 1533
